References

Adams BD, Carr B, Raez A, Hunter CJ. Cardiopulmonary resuscitation in the combat hospital and forward operating base: use of automated external defibrillators. Mil Med. 2009; 174:(6)584-587 https://doi.org/10.7205/MILMED-D-01-8108

Badnjević A, Gurbeta-Pokvić L, Hasičić M Evidence-based clinical engineering: machine learning algorithms for prediction of defibrillator performance. Biomed Signal Process Control. 2019; 54 https://doi.org/10.1016/j.bspc.2019.101629

Baldi E, Caputo ML, Savastano S An Utstein-based model score to predict survival to hospital admission: the UB-ROSC score. Int J Cardiol. 2020; 308:84-89 https://doi.org/10.1016/j.ijcard.2020.01.032

Cheskes S, Schmicker RH, Christenson J Perishock pause: an independent predictor of survival from out-of-hospital shockable cardiac arrest. Circulation. 2011; 124:(1)58-66 https://doi.org/10.1161/CIRCULATIONAHA.110.010736

Cheskes S, Hillier M, Byers A The association between manual mode defibrillation, pre-shock pause duration and appropriate shock delivery when employed by basic life support paramedics during out-of-hospital cardiac arrest. Resuscitation. 2015; 90:61-66 https://doi.org/10.1016/j.resuscitation.2015.02.022

El-Sherif N, Khan A, Savarese J, Turitto G. Pathophysiology, risk stratification, and management of sudden cardiac death in coronary artery disease. Cardiol J. 2010; 17:(1)4-10

Hanisch JR, Counts CR, Latimer AJ, Rea TD, Yin L, Sayre MR. Causes of chest compression interruptions during out-of-hospital cardiac arrest resuscitation. J Am Heart Assoc. 2020; 9:(6) https://doi.org/10.1161/JAHA.119.015599

Hatlestad D. Biphasic defibrillation. The shape of resuscitation today. Emerg Med Serv. 2004; 33:(3)51-57

Higgins J, Green S. Cochrane handbook for systematic reviews of interventions.Chichester: Wiley-Blackwell; 2008 https://doi.org/10.1002/9780470712184

Explanation of the 2011 Oxford Centre for Evidence-Based Medicine (OCEBM) levels of evidence (background document). 2023. https//www.cebm.ox.ac.uk/resources/levels-of-evidence/explanation-of-the-2011-ocebm-levels-of-evidence/ (accessed 16 May 2023)

Hu Y, Tang H, Liu C The performance of a new shock advisory algorithm to reduce interruptions during CPR. Resuscitation. 2019; 1-9 https://doi.org/10.1016/j.resuscitation.2019.07.026

Israelsson J, Wangenheim BV, Årestedt K, Semark B, Schildmeijer K, Carlsson J. Sensitivity and specificity of two different automated external defibrillators. Resuscitation. 2017; 120:108-112 https://doi.org/10.1016/j.resuscitation.2017.09.009

Jost D, Degrange H, Verret C DEFI 2005: a randomized controlled trial of the effect of automated external defibrillator cardiopulmonary resuscitation protocol on outcome from out-of-hospital cardiac arrest. Circulation. 2010; 121:(14)1614-1622 https://doi.org/10.1161/CIRCULATIONAHA.109.878389

Keebler J, Lazzara E, Misasi P. Human factors and ergonomics of prehospital emergency care.Boca Raton: Taylor and Francis; 2017 https://doi.org/10.1201/9781315280172

Human factors evaluation of an advanced defibrillator for in-hospital cardiac arrest. Contemporary Ergonomics and Human Factors. 2019. https//tinyurl.com/hn6pwz5h (accessed 16 May 2023)

Kramer-Johansen J, Edelson DP, Abella BS, Becker LB, Wik L, Steen PA. Pauses in chest compression and inappropriate shocks: a comparison of manual and semi-automatic defibrillation attempts. Resuscitation. 2007; 73:(2)212-220 https://doi.org/10.1016/j.resuscitation.2006.09.006

Lang D, Ang E. Effectiveness of using automated external defibrillator by trained healthcare professionals on survival outcomes among adult patients after in-hospital cardiac arrest: a systematic review. JBI Libr Syst Rev. 2012; 10:1-10 https://doi.org/10.11124/jbisrir-2012-338

Mader TJ, Nathanson BH, Millay S Out-of-hospital cardiac arrest outcomes stratified by rhythm analysis. Resuscitation. 2012; 83:(11)1358-1362 https://doi.org/10.1016/j.resuscitation.2012.03.033

Miller AC, Scissum K, McConnell L Real-time audio-visual feedback with handheld nonautomated external defibrillator devices during cardiopulmonary resuscitation for in-hospital cardiac arrest: a meta-analysis. Int J Crit Illn Inj Sci. 2020; 10:(3)109-122 https://doi.org/10.4103/IJCIIS.IJCIIS_155_20

Moher D, Liberati A, Tetzlaff J, Altman DG Preferred reporting items for systematic reviews and meta-analyses: the PRISMA statement. PLoS Med. 2009; 6:(7) https://doi.org/10.1371/journal.pmed.1000097

Morrison LJ, Dorian P, Long J Out-of-hospital cardiac arrest rectilinear biphasic to monophasic damped sine defibrillation waveforms with advanced life support intervention trial (ORBIT). Resuscitation. 2005; 66:(2)149-157 https://doi.org/10.1016/j.resuscitation.2004.11.031

Nadolny K, Szarpak L, Gotlib J An analysis of the relationship between the applied medical rescue actions and the return of spontaneous circulation in adults with out-of-hospital sudden cardiac arrest. Medicine (Baltimore). 2018; 97:(30) https://doi.org/10.1097/MD.0000000000011607

Nehme Z, Andrew E, Nair R, Bernard S, Smith K. Manual versus semiautomatic rhythm analysis and defibrillation for out-of-hospital cardiac arrest. Circ Cardiovasc Qual Outcomes. 2017; 10:(7) https://doi.org/10.1161/CIRCOUTCOMES.116.003577

Nishiyama T, Nishiyama A, Negishi M Diagnostic accuracy of commercially available automated external defibrillators. J Am Heart Assoc. 2015; 4:(12) https://doi.org/10.1161/JAHA.115.002465

Out of Hospital Cardiac Arrest Outcomes Registry. Review of the first 5 years and forward strategy. 2018. https//tinyurl.com/ysyv9vx7 (accessed 16 May 2023)

Parry A, Higginson R. Automated external defibrillation: implications for paramedic practice. J Paramed Pract. 2013; 5:(9)498-503 https://doi.org/10.12968/jpar.2013.5.9.498

Pytte M, Pedersen TE, Ottem J, Rokvam AS, Sunde K. Comparison of hands-off time during CPR with manual and semi-automatic defibrillation in a manikin model. Resuscitation. 2007; 73:(1)131-136 https://doi.org/10.1016/j.resuscitation.2006.08.025

Ruiz de Gauna S, Irusta U, Ruiz J, Ayala U, Aramendi E, Eftestøl T. Rhythm analysis during cardiopulmonary resuscitation: past, present, and future. Biomed Res Int. 2014; 2014 https://doi.org/10.1155/2014/386010

Soar J, Nolan JP, Böttiger BW European Resuscitation Council Guidelines for Resuscitation 2015: Section 3. Adult advanced life support. Resuscitation. 2015; 95:100-147 https://doi.org/10.1016/j.resuscitation.2015.07.016

Adult advanced life support guidelines. 2021. https//www.resus.org.uk/library/2021-resuscitation-guidelines/adult-advanced-life-support-guidelines (accessed 16 May 2023)

Cardiology in a heartbeat. In: Vaswani A, Juet Khaw HJ, Dougherty SD, Zamvar V, Lang CC (eds). Banbury: Scion Publishing; 2016

Zijlstra JA, Bekkers LE, Hulleman M, Beesems SG, Koster RW. Automated external defibrillator and operator performance in out-of-hospital cardiac arrest. Resuscitation. 2017; 118:140-146 https://doi.org/10.1016/j.resuscitation.2017.05.017

A comparison of biphasic manual and semi-automatic external defibrillation

02 June 2023
Features
02 June 2023
Volume 15 · Issue 6

Abstract

Background:

Biphasic manual defibrillation (MD) is advocated as the preferred strategy for paramedics ahead of semi-automatic external defibrillation (SAED) for out-of-hospital cardiac arrest (OHCA).

Methods:

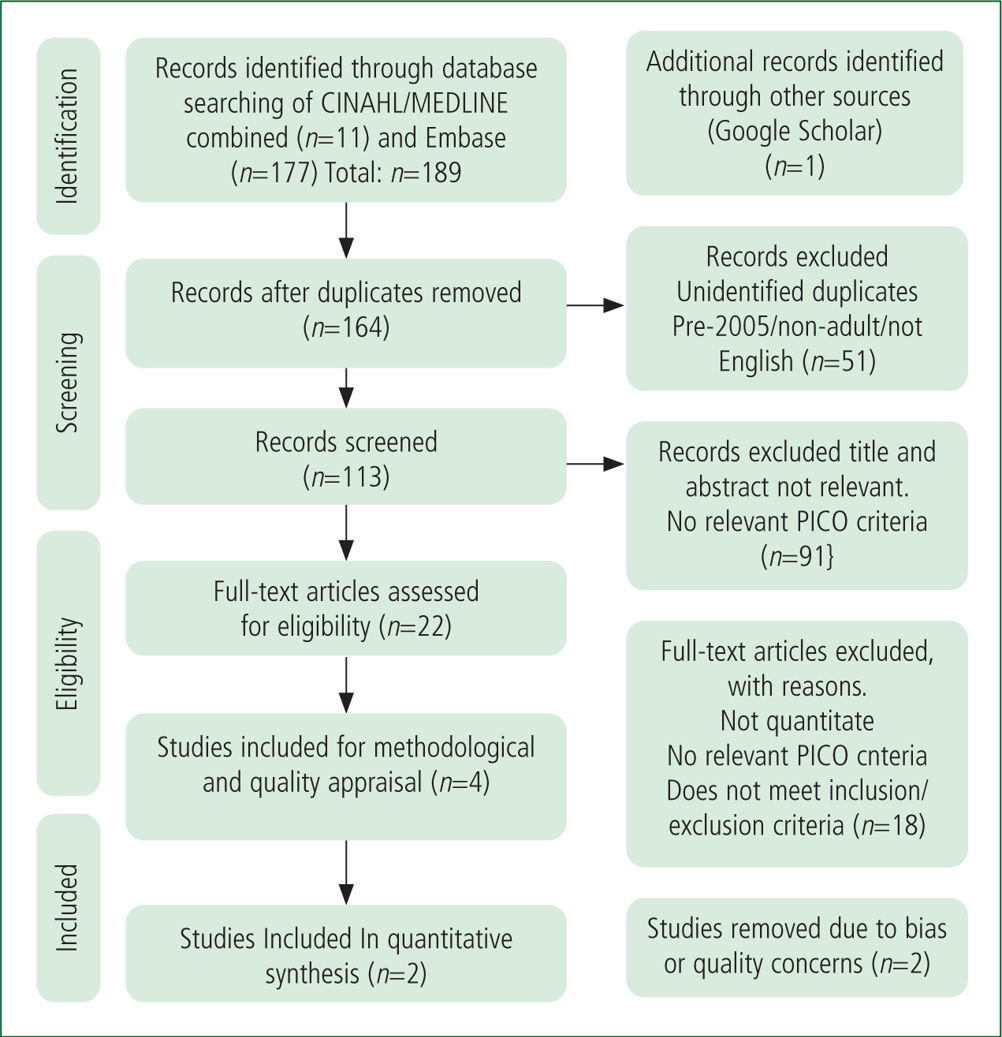

A systematic review involved searching CINAHL, MEDLINE and Embase academic databases. Comparative studies where both strategies were tested for time to first defibrillation (TTFD) and related Utstein-based model outcomes were examined to discern which strategy was superior.

Results:

Two studies met the criteria. One study found that in 4552 SAED episodes of defibrillation (30.8% of the 14 776 total defibrillation episodes), a decrease of >10% in mean TTFD (P<0.001) of an intial shockable rhythm was recorded. The same study reported an overall decrease in TTFD within 2 minutes (95% CI/P<0.001), with a 68% improved odds of receiving a shock within two minutes. SAED was associated with a 26% reduction in the risk-adjusted odds of survival (95% CI/P<0.009), attributed to cardiopulmonary resuscitation (CPR) delays. The other examined 160 defibrillations in OHCA. The MD median TTFD was 7 seconds faster (95% CI/P<0.0001) and responsible for 20% more inappropriate shocks.

Conclusions:

Modern SAED is superior in reducing TTFD and inappropriate shocks. The modern SAED and MD strategies can be enhanced by interruption-reducing technology. New SAED algorithms can detect shockable rhythms in 3 seconds. More randomised studies need to be conducted using up-to-date devices. A multifaceted approach incorporating technological advancements, ongoing research and training is necessary to ensure that the most effective defibrillation strategy is employed.

English ambulance services resuscitate 28 000 people in out-of-hospital cardiac arrest (OHCA) each year using evidenced-based algorithms in the Resuscitation Council UK's (RCUK) advanced life support (ALS) guidelines (Soar et al, 2021). The majority are adults who arrest from issues of cardiogenic origin (El-Sherif et al, 2010). Around 8% survive to discharge following early recognition of a defibrillatable or shockable ventricular rhythm and early defibrillation within the chain of survival (Soar et al, 2021). In OHCA, 23% of arrests in people aged <65 years have an initial shockable rhythm across all responder types (Nadolny et al, 2018).

Aetiology, bystander cardiopulmonary resuscitation (CPR), time to first defibrillation (TTFD) and presenting rhythm are all variables within an Utstein-based model that gives prognostic relevance of the factors that improve survival outcomes (Baldi et al, 2020). When using this Utstein-based model, 17.4% of patients have a shockable rhythm and one-third of paramedic defibrillations result in event survival (Baldi et al, 2020).
